Description

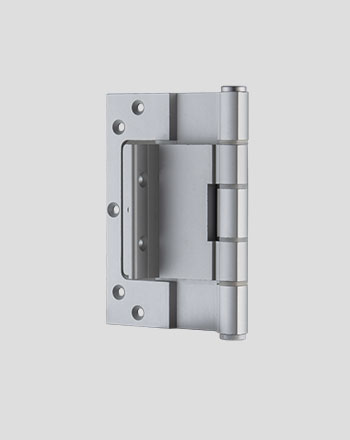

Hinge Non Mortice Medium wide throw Aluminium
Hinge can swing a door past 115mm projection (wide throw).
Centre pin – not suitable for wide flat door jambs –
Door must be flush with door jamb or have a projecting door jamb frame.
Check gap tolerance as these hinges are much thicker than standard non mortice hinges.
Suits 40mm thick doors – standard size 2040 x 820mm
3 Hinges minimum required if using with a door closer.
- For Aluminium or Timber fixing
- Quick fixing – no check in
- Countersunk holes 8g
- Nylon bearings and caps
- Fixed pin
- Pack 1 – 20 Pces
Length: 150mm
Width: 60mm(From door face to pin centre)
Gauge: 4.5mm
Finish: Silver
Material: High strength T6 Alloy
Guide Weight: 50Kg 3 hinges (based on a 2100x920mm door)
80Kg 4 hinges (based on a 2100x920mm door)
